1280x1024 / 640x512 whatunga me te whakaputa i te putanga o te kamera kamera
Tautanga
Āhua | SG - SWZ12ND2 - 17510 | SG - SWZ06N2 - 17510 | |
Whakano | Pūoko whakaahua | 1/2 "Sony Idas Katia te Ao Swir Sentor Imx990 | 1/4 "Sony Idas Katia te Ao Swir Sensor Imx991 |
| Pihi whaihua | Te āhua. 1.34p | Te āhua. 0.34mp | |
| Rahi pika | 5μM | ||
Karaehe karaehe | Whakautu Tere | 1000 ~ 1700nm | |
| Icr | Tautoko 2 Taonga: Roopu Whanui: 1000 ~ 1700 ~ 1750 ~ 1700 ~ 1700NM | ||
| Roa roa | 17mm ~ 510mm, 30x toptical Zoom | ||
| Arāpe | F2.8 ~ f5.5 | ||
| Tuhinga o mua | H: 21.3 ° ~ 0.71 °, v: 17.1 ° ~ 0.57 °, D: 27.1 ° ~ 0.92 ° | H: 11.6 ° ~ 0.37 °, v: 9.3 °, D: 14.8 ° ~ 0.47 ° | |
| Tawhiti arotahi | 1m ~ 10m (whanui ~ tele) | ||
| Tere tere | Te āhua. 7s (te whanui optical ~ tele) | ||
Ataata | Pōkai āhe | H.265 / H.264 / H.264H / MJPEG | |
| Taumira | 25/30/50 / 60fps @ 1280 × 1024 | 25/30/50 / 60fps @ 640 × 512 | |
| Te reiti o te ataata | 32kbps ~ 16Mbps | ||
| Oro | AAC / MP2L2 | ||
| Ataata Lvds | 25/30/50 / 60fps @ 2PP (1920 × 1080) | ||
Whatunga | Pākoro | Kāri tf (256 GB), ftp, NAS | |
| Kawarua Whatunga | Onvif, http, https, ipv4, ipv6, sts, DDNS, RTP, TCP, UDP | ||
| Musincast | Tautoko | ||
| Whakahoutanga Firstware (LVDS) | Ka taea anake te whakahou i te firmware ma te tauranga whatunga | ||
| Nga kaupapa Whanui | Te Motion, Tamper, Kaari SD, Whatunga | ||
| Ivs | Tripwire, whakawhiti i nga taiapa, te wawao, te mea kua whakarerea - Te haere, te haerere waka, te whakatau a te iwi, te ngaro, te aukati i te mate. | ||
| Te whakaheke haruru | 2D / 3d | ||
| Aratau Whakaputa | Ā-ringa, auto, autorture matua, matua matua | ||
| Utu utu | Tautoko | ||
| Tere tere | 1/1 ~ 1 / 30000s | ||
| Aratau Arotahi | Auto / ā-ringa / Semi Auto | ||
| Whakahuahua hiko | Tautoko | ||
| Wera wera whakaheke | Tautoko | ||
| Kōwiri | Tautoko | ||
| Eis | Tautoko | ||
| Mamati Zoom | 16x | ||
| Te mana o waho | Ttal | ||
| Āati | 4pin Ethernet Port, 6Pin Serial & Port Port, 5Pin Ororongo Port.30pin LVD | ||
| Kawa Whakawhitiwhiti | Sony vica, preco d / p | ||
| Nga tikanga whakahaere | - 30 ~ + 60 ° C / 20% ~ 80% RH | ||
| Tikanga rokiroki | - 40 ~ + 70 ° C / 20% ~ 95% RH | ||
| Te mana whakahaere | DC 12V | ||
| Te kohi mana (TBD) | Avg: 6W; Max: 11w | ||

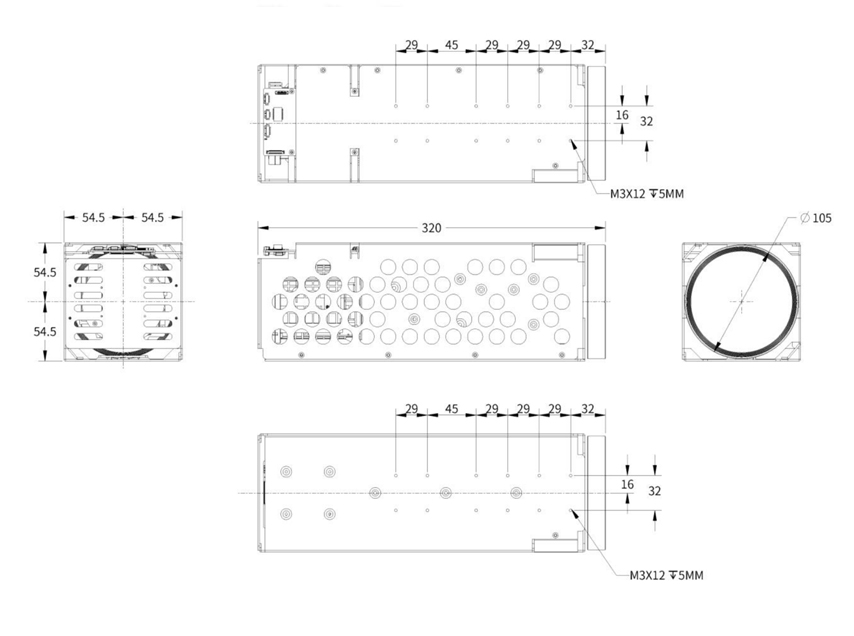

| Nga Rahi (L * W * H) | Te āhua. 320mm * 109mm * 109mm | ||
| Taumaha | 3.1kg | ||
Atanga whatunga
| Tuhinga | PIN tau | Ingoa pin | Whakaaturanga |
| Atanga atanga j2_4pin ethernet | 1 | Ethrx - | Whakatakotoranga Itarangi Ethernet, Ipurangi RX - |
| 2 | Ethrx + | Te Whakatakotoranga Ethernet Apprictive, Ipurangi RX + | |
| 3 | ETHTX - | Whakatakotoranga Itarangi Ethernet, TX Ipurangi - | |
| 4 | Ethtx + | Whakahoahoa Ithernet Port, TX-TX + | |
| J3_6Pin Mana me te atanga UART | 1 | DC_IN | DC12V |
| 2 | Tūtiro | Tūtiro | |
| 3 | Rxd1 | TTL Taumata 3.3V, Plco Kawa | |
| 4 | TXD1 | TTL Taumata 3.3V, Plco Kawa | |
| 5 | Rxd0 | TTL Taumata 3.3V, Visca Kawa | |
| 6 | Txd0 | TTL Taumata 3.3V, Visca Kawa | |
| J1_5PIN Atanga Oro Atanga | 1 | Ao ngātahi puku | Ororongo (raina) |
| 2 | Tūtiro | Tūtiro | |
| 3 | Aute_in | Ororongo i roto i (raina i roto) | |
| 4 | Tūtiro | Tūtiro | |
| 5 | NC | NC |
Atanga LVDS
| Taunga tīma | Nama | Ingoa pin | Whakaaturanga |
| Atanga J4_30pin LVDS Atanga (rite ki te atanga mamati a Sony 30pin) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | Tūtiro | Tūtiro | |
| 10 | Tūtiro | ||
| 11 | Tūtiro | ||
| 12 | Tūtiro | ||
| 13 | DC | Putanga DC (DC + 7V ~ + 12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | UART1_TX | TTL Taumata 3.3V, vica kawa, te taua ki te TXD0 i runga i te tauranga J3_6PIN. Engari kaore e taea te hono atu i te wa ano. | |
| 19 | Uart1_rx | TTL Taumata 3.3V, VisCA kawa, te mea ano ki a RXD0 i runga i te tauranga J3_6PIN. Engari kaore e taea te hono atu i te wa ano. | |
| 20 | Tūtiro | Tūtiro | |
| 21 | Txout0 - | ||
| 22 | Txout0 + | ||
| 23 | Txout1 - | ||
| 24 | Txout1 + | ||
| 25 | Txout2 - | ||
| 26 | Txout2 + | ||
| 27 | TxOutClk - | ||
| 28 | TxOutClk + | ||
| 29 | TXOUT3 - | ||
| 30 | Txout3 + |
