2000m Te tawhiti 1550nm inshirad laser laser laser
Āhua | SG -IR1550-2K |
| Hāngai tonuTawhiti | ≥2000m |
| Mōwere | Laser homogenization |
| Roa | 1550nm ±5nm |
| Te mana whakauru | <70W |
| Mana maramara laser | 10w (2 * 5w) |
| Te putanga marama | ≥8w |
| Te koki rama | 0.8 ° ~ 70 ° (haere tonu te zoom) |
| Dometer | φ19m (@ 0.8 ° @ 2000m) |
| ZTe wa | ≤3s (Tata ki tawhiti) |
| Te wa tuatahi | <10s |
| MukaCtokakonganukuDiMameter | 400μm |
| Taumata haumaru laser | Akomanga IV (Fda, IEC 60825) |
| Te tawhiti o te haumaru laser | 15m (koki tawhiti) |
| Atanga Whakawhitiwhiti | Rs - 485, TTL232 |
| Kawa Whakawhitiwhiti | Pelco - D (9600bps) |
| Aratau Mahi | Coningus |
| Te ora ratonga | > 20,000h |
| Te mana whakauru | DC24V ± 10%, 2.6 ± 0.3a |
| MahiPāmahana | - 35 ° C~+ 55 ° C |
| StōtaraTwhaihua | - 40 ° C~+ 85 ° C |

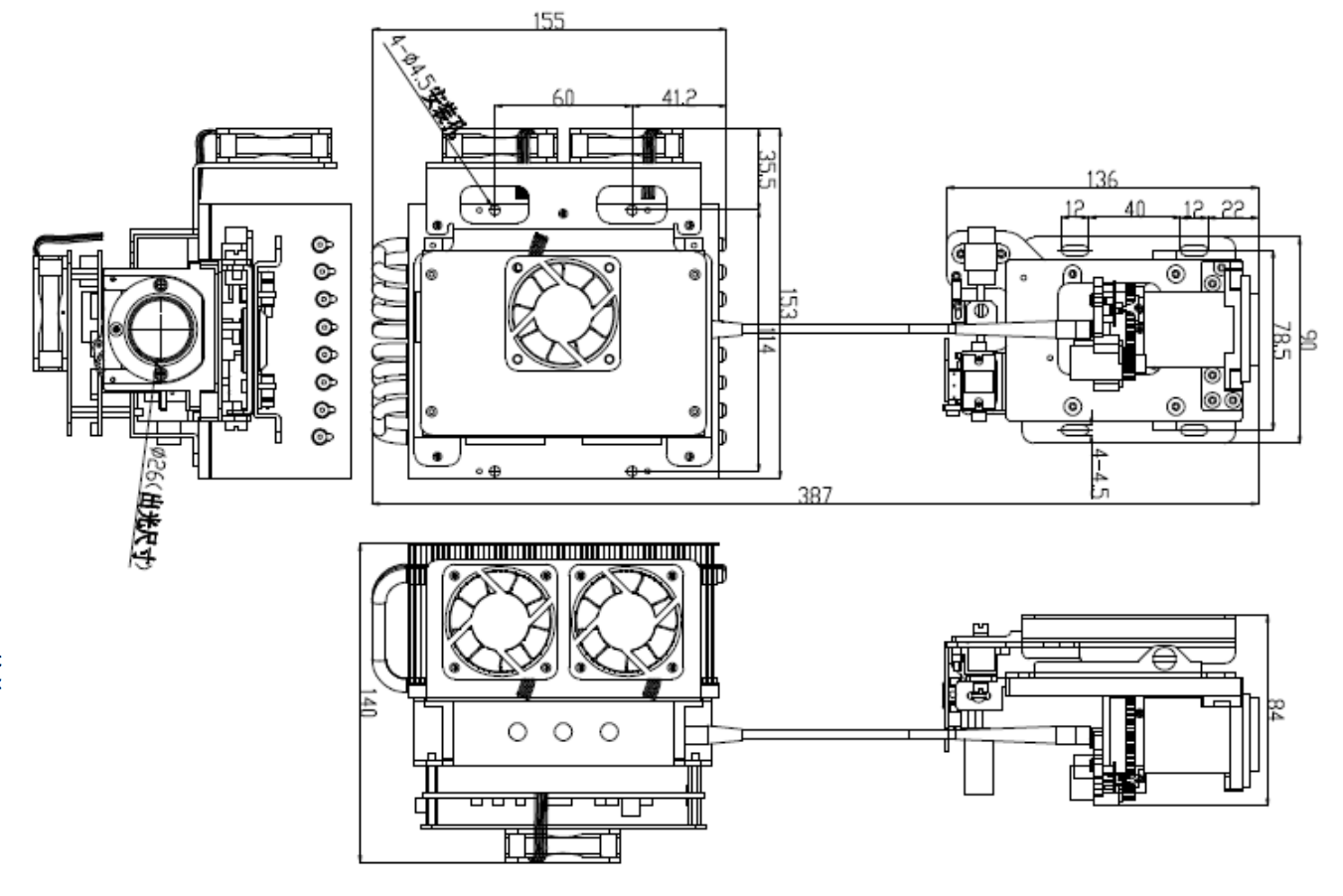

| Korahi | 387mmx153mmx140mm |
| Taumaha | 3.5kg |
| Papa hiko hiko | |
| ATe aronga urupare | LEFT / Tika: ± 3 °, Up / Down: ± 3 ° |
| Whakatikatika Whakatikatika | 0.01 ° |
